This class is the common superclass of all graphical objects that can be displayed on a graphical window. More...

#include "gobjects.h"

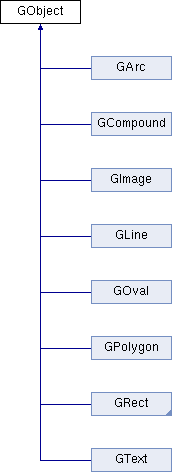

Inheritance diagram for GObject:

Public Types
enum	LineStyle { LINE_NONE, LINE_SOLID, LINE_DASH, LINE_DOT, LINE_DASH_DOT, LINE_DASH_DOT_DOT }
	Styles that can be used for the outline around various shapes. More...

Public Member Functions
	~GObject()
	Frees the storage for the object. More...

bool	contains(double x, double y) const
	Returns `true` if the specified point is inside the object. More...

bool	contains(const GPoint &pt) const
	Returns `true` if the specified point is inside the object. More...

GPoint	getBottomRightLocation() const
	Returns the x/y coordinates of the bottom/right corner of the object. More...

double	getBottomY() const
	Returns the y-coordinate of the bottom of the object. More...

GRectangle	getBounds() const
	Returns the bounding box of this object, which is defined to be the smallest rectangle that covers everything drawn by the figure. More...

GPoint	getCenterLocation() const
	Returns the x/y-coordinates of the center of the object. More...

double	getCenterX() const
	Returns the x-coordinate of the center of the object. More...

double	getCenterY() const
	Returns the y-coordinate of the center of the object. More...

string	getColor() const
	Returns the color used to display this object. More...

string	getFillColor() const
	Returns the color used to display the filled region of this object. More...

double	getHeight() const
	Returns the height of this object, which is the same as the height of its bounding box. More...

LineStyle	getLineStyle() const
	Returns the object's style such as solid or dashed. More...

double	getLineWidth() const
	Returns the width of the line used to draw this object. More...

GPoint	getLocation() const
	Returns the location of the top-left corner of object. More...

double	getOpacity() const
	Returns how opaque (non-transparent) this object will appear from 0.0 (completely transparent) to 1.0 (completely opaque, default). More...

GCompound *	getParent() const
	Returns a pointer to the `GCompound` that contains this object. More...

double	getRightX() const
	Returns the x-coordinate of the right side of the object. More...

GDimension	getSize() const
	Returns the size of the object as a `GDimension`. More...

string	getType() const =0
	Returns the type of the object as a string, such as `"GOval"` or `"GRect"`. More...

double	getWidth() const
	Returns the width of this object, which is equal to the width of the bounding box. More...

double	getX() const
	Returns the leftmost x-coordinate of the object. More...

double	getY() const
	Returns the topmost y-coordinate of the object. More...

bool	isFilled() const
	Returns `true` if the object is filled with color. More...

bool	isTransformed() const
	Returns `true` if this object has been transformed by calling methods such as rotate() or scale() on it. More...

bool	isVisible() const
	Returns `true` if this object is visible on screen. More...

void	move(double dx, double dy)
	Moves the object on the screen using the displacements `dx` and `dy`. More...

void	repaint()
	Instructs the object to redraw itself on screen. More...

void	resetTransform()
	Undoes any previous scale/rotate transformations on this object. More...

void	rotate(double theta)
	Transforms the object by rotating it `theta` degrees counterclockwise around its origin. More...

void	scale(double sf)
	Scales the object by the specified scale factor. More...

void	scale(double sx, double sy)
	Scales the object by the specified scale factors. More...

void	sendBackward()
	Moves this object one step toward the back in the z dimension. More...

void	sendForward()
	Moves this object one step toward the front in the z dimension. More...

void	sendToBack()
	Moves this object to the back of the display in the z dimension. More...

void	sendToFront()
	Moves this object to the front of the display in the z dimension. More...

void	setBottomRightLocation(double x, double y)
	Sets the location of the bottom/right of this object. More...

void	setBottomRightLocation(const GPoint &pt)
	Sets the location of the bottom/right of this object. More...

void	setBottomY(double y)
	Sets the location of the bottom y-coordinate of this object. More...

void	setBounds(double x, double y, double width, double height)
	Changes the bounds of this object to the specified values. More...

void	setBounds(const GRectangle &size)
	Changes the bounds of this object to the specified rectangle. More...

void	setCenterLocation(double x, double y)
	Sets the location of the center of this object. More...

void	setCenterLocation(const GPoint &pt)
	Sets the location of the center of this object. More...

void	setCenterX(double x)
	Sets the x-coordinate of the center of this object. More...

void	setCenterY(double y)
	Sets the y-coordinate of the center of this object. More...

void	setColor(int r, int g, int b)
	Sets the color used to display this object. More...

void	setColor(int rgb)
	Sets the color used to display this object. More...

void	setColor(string color)
	Sets the color used to display this object. More...

void	setFillColor(int r, int g, int b)
	Sets the color used to display the filled region of this object, if any. More...

void	setFillColor(int rgb)
	Sets the color used to display the filled region of this object, if any. More...

void	setFillColor(string color)
	Sets the color used to display the filled region of this object, if any. More...

void	setFilled(bool flag)
	Sets the fill status for the object, where `false` is outlined and `true` is filled. More...

void	setFont(const QFont &font)
	Changes the font used to display the object as specified by the given Qt font. More...

void	setFont(string font)
	Changes the font used to display the object as specified by the string `font`, which has the following format: More...

void	setForeground(int r, int g, int b)
	Sets the color used to display this object. More...

void	setForeground(int rgb)
	Sets the color used to display this object. More...

void	setForeground(string color)
	Sets the color used to display this object. More...

void	setHeight(double height)
	Changes the height of this object to the specified height without changing its width. More...

void	setLineStyle(LineStyle lineStyle)
	Sets the object's style such as solid (GObject::LINE_SOLID) or dashed (GObject::LINE_DASH). More...

void	setLineWidth(double lineWidth)
	Sets the width of the line used to draw this object. More...

void	setLocation(double x, double y)
	Sets the location of the top-left corner of this object to the specified coordinates. More...

void	setLocation(const GPoint &pt)
	Sets the location of the top-left corner of this object to the specified point. More...

void	setOpacity(double opacity)
	Sets how opaque (non-transparent) this object will appear from 0.0 (completely transparent) to 1.0 (completely opaque, default). More...

void	setRightX(double x)
	Sets the location of the rightmost x-coordinate of this object. More...

void	setSize(double width, double height)
	Changes the size of this object to the specified width and height. More...

void	setSize(const GDimension &size)
	Changes the size of this object to the specified width and height. More...

void	setVisible(bool flag)
	Sets whether this object is visible. More...

void	setWidth(double width)
	Changes the width of this object to the specified width without changing its height. More...

void	setX(double x)
	Sets the x location of the left side of this object. More...

void	setY(double y)
	Sets the y location of the top of this object. More...

string	toString() const
	Returns a printable representation of the object. More...

Static Public Member Functions
static bool	isAntiAliasing()
	Returns whether we should globally anti-alias graphical objects. More...

static void	setAntiAliasing(bool value)
	Globally turns on/off the anti-aliasing feature that smooths out the edges of onscreen shapes. More...

Protected Member Functions
string	toStringExtra() const
	Returns a string containing any extra unique information about this type of graphical object. More...

Protected Attributes
QBrush	_brush

string	_color

int	_colorInt

string	_fillColor

int	_fillColorInt

bool	_fillFlag

string	_font

double	_height

LineStyle	_lineStyle

double	_lineWidth

double	_opacity

GCompound *	_parent

QPen	_pen

QTransform	_transform

bool	_transformed

bool	_visible

double	_width

double	_x

double	_y

Detailed Description

This class is the common superclass of all graphical objects that can be displayed on a graphical window.

The class GObject itself is an abstract class, which means that you are not allowed to construct a GObject directly but must instead construct one of the concrete subclasses.

Most methods used for graphics take a pointer to a

GObject

rather than the

GObject

itself. Applications that use

GObject

pointers therefore use the arrow operator (

->

) to apply methods to the object pointer. For examples illustrating the use of the

GObject

class, see the descriptions of the individual subclasses.

Member Enumeration Documentation

◆ LineStyle

enum LineStyle

Styles that can be used for the outline around various shapes.

Call setLineStyle on a GObject and pass one of these values.

Enumerator
LINE_NONE
LINE_SOLID
LINE_DASH
LINE_DOT
LINE_DASH_DOT
LINE_DASH_DOT_DOT

Constructor & Destructor Documentation

◆ ~GObject()

~GObject ( )

virtual

Frees the storage for the object.

Member Function Documentation

◆ contains() [1/2]

bool contains	(	double	x,
		double	y
	)		const

virtual

Returns true if the specified point is inside the object.

Reimplemented in GRoundRect, GPolygon, GOval, GLine, GCompound, and GArc.

◆ contains() [2/2]

bool contains ( const GPoint & pt ) const

virtual

Returns true if the specified point is inside the object.

◆ getBottomRightLocation()

GPoint getBottomRightLocation ( ) const

virtual

Returns the x/y coordinates of the bottom/right corner of the object.

◆ getBottomY()

double getBottomY ( ) const

virtual

Returns the y-coordinate of the bottom of the object.

Equivalent to the top y-coordinate plus the object's height.

◆ getBounds()

GRectangle getBounds ( ) const

virtual

Returns the bounding box of this object, which is defined to be the smallest rectangle that covers everything drawn by the figure.

The coordinates of this rectangle do not necessarily match the location returned by getLocation. Given a GText object, for example, getLocation returns the coordinates of the point on the baseline at which the string begins; the getBounds method, by contrast, returns a rectangle that covers the entire window area occupied by the string.

Reimplemented in GText, GPolygon, GLine, GCompound, and GArc.

◆ getCenterLocation()

GPoint getCenterLocation ( ) const

virtual

Returns the x/y-coordinates of the center of the object.

Equivalent to the top/left plus half the object's size.

◆ getCenterX()

double getCenterX ( ) const

virtual

Returns the x-coordinate of the center of the object.

Equivalent to the top/left plus half the object's width.

◆ getCenterY()

double getCenterY ( ) const

virtual

Returns the y-coordinate of the center of the object.

Equivalent to the top/left plus half the object's height.

◆ getColor()

string getColor ( ) const

virtual

Returns the color used to display this object.

This color is always returned as a string in the form "#rrggbb", where rr, gg, and bb are the red, green, and blue components of the color, expressed as two-digit hexadecimal values.

◆ getFillColor()

string getFillColor ( ) const

virtual

Returns the color used to display the filled region of this object.

If none has been set, returns the empty string.

◆ getHeight()

double getHeight ( ) const

virtual

Returns the height of this object, which is the same as the height of its bounding box.

Reimplemented in GPolygon, and GLine.

◆ getLineStyle()

GObject::LineStyle getLineStyle ( ) const

virtual

Returns the object's style such as solid or dashed.

◆ getLineWidth()

double getLineWidth ( ) const

virtual

Returns the width of the line used to draw this object.

Returns: default 1

◆ getLocation()

GPoint getLocation ( ) const

virtual

Returns the location of the top-left corner of object.

◆ getOpacity()

double getOpacity ( ) const

virtual

Returns how opaque (non-transparent) this object will appear from 0.0 (completely transparent) to 1.0 (completely opaque, default).

◆ getParent()

GCompound * getParent ( ) const

virtual

Returns a pointer to the GCompound that contains this object.

Every GWindow is initialized to contain a single GCompound that is aligned with the window. Adding objects to the window adds them to that GCompound, which means that every object you add to the window has a parent. Calling getParent on the top-level GCompound returns nullptr.

◆ getRightX()

double getRightX ( ) const

virtual

Returns the x-coordinate of the right side of the object.

Equivalent to the left x-coordinate plus the object's width.

◆ getSize()

GDimension getSize ( ) const

virtual

Returns the size of the object as a GDimension.

◆ getType()

virtual string getType ( ) const

pure virtual

Returns the type of the object as a string, such as "GOval" or "GRect".

Each GObject subtype must override this method.

Implemented in GText, GRoundRect, GRect, GPolygon, GOval, GLine, GImage, GCompound, and GArc.

◆ getWidth()

double getWidth ( ) const

virtual

Returns the width of this object, which is equal to the width of the bounding box.

Reimplemented in GPolygon, and GLine.

◆ getX()

double getX ( ) const

virtual

Returns the leftmost x-coordinate of the object.

◆ getY()

double getY ( ) const

virtual

Returns the topmost y-coordinate of the object.

◆ isAntiAliasing()

bool isAntiAliasing ( )

static

Returns whether we should globally anti-alias graphical objects.

On by default.

◆ isFilled()

bool isFilled ( ) const

virtual

Returns true if the object is filled with color.

◆ isTransformed()

bool isTransformed ( ) const

virtual

Returns true if this object has been transformed by calling methods such as rotate() or scale() on it.

Certain operations (such as setSize) cannot be performed after a graphical object has been transformed.

◆ isVisible()

bool isVisible ( ) const

virtual

Returns true if this object is visible on screen.

◆ move()

void move	(	double	dx,
		double	dy
	)

virtual

Moves the object on the screen using the displacements dx and dy.

◆ repaint()

void repaint ( )

virtual

Instructs the object to redraw itself on screen.

Reimplemented in GCompound.

◆ resetTransform()

void resetTransform ( )

virtual

Undoes any previous scale/rotate transformations on this object.

◆ rotate()

void rotate ( double theta )

virtual

Transforms the object by rotating it theta degrees counterclockwise around its origin.

After calling this method on a graphical object, isTransformed will return true for that object unless you subsequently call resetTransform on it.

◆ scale() [1/2]

void scale ( double sf )

virtual

Scales the object by the specified scale factor.

This form scales the object by sf in both dimensions, so that invoking gobj->scale(2); doubles the size of the object. After calling this method on a graphical object, isTransformed will return true for that object unless you subsequently call resetTransform on it.

◆ scale() [2/2]

void scale	(	double	sx,
		double	sy
	)

virtual

Scales the object by the specified scale factors.

For example, gobj->scale(2, 2); doubles the size of the object. This form applies independent scale factors to the x and y dimensions. After calling this method on a graphical object, isTransformed will return true for that object unless you subsequently call resetTransform on it.

◆ sendBackward()

void sendBackward ( )

Moves this object one step toward the back in the z dimension.

If it was already at the back of the stack, nothing happens.

◆ sendForward()

void sendForward ( )

Moves this object one step toward the front in the z dimension.

If it was already at the front of the stack, nothing happens.

◆ sendToBack()

void sendToBack ( )

Moves this object to the back of the display in the z dimension.

By moving it to the back, this object will appear to be behind the other graphical objects on the display and may be obscured by other objects in front.

◆ sendToFront()

void sendToFront ( )

Moves this object to the front of the display in the z dimension.

By moving it to the front, this object will appear to be on top of the other graphical objects on the display and may hide any objects that are further back.

◆ setAntiAliasing()

void setAntiAliasing ( bool value )

static

Globally turns on/off the anti-aliasing feature that smooths out the edges of onscreen shapes.

On by default. Does not repaint any onscreen objects when called; you must do this yourself.

◆ setBottomRightLocation() [1/2]

void setBottomRightLocation	(	double	x,
		double	y
	)

virtual

Sets the location of the bottom/right of this object.

◆ setBottomRightLocation() [2/2]

void setBottomRightLocation ( const GPoint & pt )

virtual

Sets the location of the bottom/right of this object.

◆ setBottomY()

void setBottomY ( double y )

virtual

Sets the location of the bottom y-coordinate of this object.

◆ setBounds() [1/2]

void setBounds	(	double	x,
		double	y,
		double	width,
		double	height
	)

virtual

Changes the bounds of this object to the specified values.

◆ setBounds() [2/2]

void setBounds ( const GRectangle & size )

virtual

Changes the bounds of this object to the specified rectangle.

◆ setCenterLocation() [1/2]

void setCenterLocation	(	double	x,
		double	y
	)

virtual

Sets the location of the center of this object.

◆ setCenterLocation() [2/2]

void setCenterLocation ( const GPoint & pt )

virtual

Sets the location of the center of this object.

◆ setCenterX()

void setCenterX ( double x )

virtual

Sets the x-coordinate of the center of this object.

◆ setCenterY()

void setCenterY ( double y )

virtual

Sets the y-coordinate of the center of this object.

◆ setColor() [1/3]

void setColor	(	int	r,
		int	g,
		int	b
	)

virtual

Sets the color used to display this object.

See gcolor.h for more detail about how to specify colors.

Equivalent to setForeground.

Parameters

r	redness from 0-255
g	greenness from 0-255
b	blueness from 0-255

◆ setColor() [2/3]

void setColor ( int rgb )

virtual

Sets the color used to display this object.

See gcolor.h for more detail about how to specify colors.

Equivalent to setForeground.

Parameters

rgb	an RGB integer value such as 0x7700ff

◆ setColor() [3/3]

void setColor ( string color )

virtual

Sets the color used to display this object.

See gcolor.h for more detail about how to specify colors.

Equivalent to setForeground.

Parameters

color color string such as "#7700ff" or "purple"

◆ setFillColor() [1/3]

void setFillColor	(	int	r,
		int	g,
		int	b
	)

virtual

Sets the color used to display the filled region of this object, if any.

As a side effect, sets this object to be filled (setFilled(true)). See gcolor.h for more detail about how to specify colors. If an empty string is passed, sets filled to false.

Parameters

r	redness from 0-255
g	greenness from 0-255
b	blueness from 0-255

◆ setFillColor() [2/3]

void setFillColor ( int rgb )

virtual

Sets the color used to display the filled region of this object, if any.

As a side effect, sets this object to be filled (setFilled(true)). See gcolor.h for more detail about how to specify colors.

Parameters

rgb	an RGB integer value such as 0x7700ff

◆ setFillColor() [3/3]

void setFillColor ( string color )

virtual

Sets the color used to display the filled region of this object, if any.

As a side effect, sets this object to be filled (setFilled(true)). See gcolor.h for more detail about how to specify colors. If an empty string is passed, sets filled to false.

Parameters

color color string such as "#7700ff" or "purple"

◆ setFilled()

void setFilled ( bool flag )

virtual

Sets the fill status for the object, where false is outlined and true is filled.

◆ setFont() [1/2]

void setFont ( const QFont & font )

virtual

Changes the font used to display the object as specified by the given Qt font.

See gfont.h for more detail about how to specify fonts.

Reimplemented in GText.

◆ setFont() [2/2]

void setFont ( string font )

virtual

Changes the font used to display the object as specified by the string font, which has the following format:

"family-style-size"

where both style and size are optional. If any of these elements are missing or specified as an asterisk, the existing value is retained. See gfont.h for more detail about how to specify fonts.

Reimplemented in GText.

◆ setForeground() [1/3]

void setForeground	(	int	r,
		int	g,
		int	b
	)

virtual

Sets the color used to display this object.

See gcolor.h for more detail about how to specify colors.

Equivalent to setColor.

Parameters

r	redness from 0-255
g	greenness from 0-255
b	blueness from 0-255

◆ setForeground() [2/3]

void setForeground ( int rgb )

virtual

Sets the color used to display this object.

See gcolor.h for more detail about how to specify colors.

Equivalent to setColor.

Parameters

rgb	an RGB integer value such as 0x7700ff

◆ setForeground() [3/3]

void setForeground ( string color )

virtual

Sets the color used to display this object.

See gcolor.h for more detail about how to specify colors.

Equivalent to setColor.

Parameters

color color string such as "#7700ff" or "purple"

◆ setHeight()

void setHeight ( double height )

virtual

Changes the height of this object to the specified height without changing its width.

◆ setLineStyle()

void setLineStyle ( GObject::LineStyle lineStyle )

virtual

Sets the object's style such as solid (GObject::LINE_SOLID) or dashed (GObject::LINE_DASH).

◆ setLineWidth()

void setLineWidth ( double lineWidth )

virtual

Sets the width of the line used to draw this object.

The default line width is 1.

◆ setLocation() [1/2]

void setLocation	(	double	x,
		double	y
	)

virtual

Sets the location of the top-left corner of this object to the specified coordinates.

◆ setLocation() [2/2]

void setLocation ( const GPoint & pt )

virtual

Sets the location of the top-left corner of this object to the specified point.

◆ setOpacity()

void setOpacity ( double opacity )

virtual

Sets how opaque (non-transparent) this object will appear from 0.0 (completely transparent) to 1.0 (completely opaque, default).

Exceptions

ErrorException if opacity is out of range [0.0, 1.0]

◆ setRightX()

void setRightX ( double x )

virtual

Sets the location of the rightmost x-coordinate of this object.

◆ setSize() [1/2]

void setSize	(	double	width,
		double	height
	)

virtual

Changes the size of this object to the specified width and height.

◆ setSize() [2/2]

void setSize ( const GDimension & size )

virtual

Changes the size of this object to the specified width and height.

◆ setVisible()

void setVisible ( bool flag )

virtual

Sets whether this object is visible.

Graphical objects are initially visible when created.

◆ setWidth()

void setWidth ( double width )

virtual

Changes the width of this object to the specified width without changing its height.

◆ setX()

void setX ( double x )

virtual

Sets the x location of the left side of this object.

◆ setY()

void setY ( double y )

virtual

Sets the y location of the top of this object.

◆ toString()

string toString ( ) const

virtual

Returns a printable representation of the object.

Reimplemented in GCompound.

◆ toStringExtra()

string toStringExtra ( ) const

protectedvirtual

Returns a string containing any extra unique information about this type of graphical object.

Reimplemented in GText, GRoundRect, GPolygon, GLine, GImage, and GArc.

Friends And Related Function Documentation

◆ GArc

friend class GArc

friend

◆ GCompound

friend class GCompound

friend

◆ GImage

friend class GImage

friend

◆ GInteractor

friend class GInteractor

friend

◆ GLine

friend class GLine

friend

◆ GOval

friend class GOval

friend

◆ GPolygon

friend class GPolygon

friend

◆ GRect

friend class GRect

friend

◆ GRoundRect

friend class GRoundRect

friend

◆ GText

friend class GText

friend

Member Data Documentation

◆ _brush

QBrush _brush

protected

◆ _color

string _color

protected

◆ _colorInt

int _colorInt

protected

◆ _fillColor

string _fillColor

protected

◆ _fillColorInt

int _fillColorInt

protected

◆ _fillFlag

bool _fillFlag

protected

◆ _font

string _font

protected

◆ _height

double _height

protected

◆ _lineStyle

LineStyle _lineStyle

protected

◆ _lineWidth

double _lineWidth

protected

◆ _opacity

double _opacity

protected

◆ _parent

GCompound* _parent

protected

◆ _pen

QPen _pen

protected

◆ _transform

QTransform _transform

protected

◆ _transformed

bool _transformed

protected

◆ _visible

bool _visible

protected

◆ _width

double _width

protected

◆ _x

double _x

protected

◆ _y

double _y

protected

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ LineStyle

Constructor & Destructor Documentation

◆ ~GObject()

Member Function Documentation

◆ contains() [1/2]

◆ contains() [2/2]

◆ getBottomRightLocation()

◆ getBottomY()

◆ getBounds()

◆ getCenterLocation()

◆ getCenterX()

◆ getCenterY()

◆ getColor()

◆ getFillColor()

◆ getHeight()

◆ getLineStyle()

◆ getLineWidth()

◆ getLocation()

◆ getOpacity()

◆ getParent()

◆ getRightX()

◆ getSize()

◆ getType()

◆ getWidth()

◆ getX()

◆ getY()

◆ isAntiAliasing()

◆ isFilled()

◆ isTransformed()

◆ isVisible()

◆ move()

◆ repaint()

◆ resetTransform()

◆ rotate()

◆ scale() [1/2]

◆ scale() [2/2]

◆ sendBackward()

◆ sendForward()

◆ sendToBack()

◆ sendToFront()

◆ setAntiAliasing()

◆ setBottomRightLocation() [1/2]

◆ setBottomRightLocation() [2/2]

◆ setBottomY()

◆ setBounds() [1/2]

◆ setBounds() [2/2]

◆ setCenterLocation() [1/2]

◆ setCenterLocation() [2/2]

◆ setCenterX()

◆ setCenterY()

◆ setColor() [1/3]

◆ setColor() [2/3]

◆ setColor() [3/3]

◆ setFillColor() [1/3]

◆ setFillColor() [2/3]

◆ setFillColor() [3/3]

◆ setFilled()

◆ setFont() [1/2]

◆ setFont() [2/2]

◆ setForeground() [1/3]

◆ setForeground() [2/3]

◆ setForeground() [3/3]

◆ setHeight()

◆ setLineStyle()

◆ setLineWidth()

◆ setLocation() [1/2]

◆ setLocation() [2/2]

◆ setOpacity()

◆ setRightX()

◆ setSize() [1/2]

◆ setSize() [2/2]

◆ setVisible()

◆ setWidth()
